Hydraulic Lifting Dual Differential Drive Wheel

We supply dual differential drive wheels, which are ideal for use in tight spaces and demanding industrial environments. As one of China's leading suppliers of core components for mobile robots, we have over 10 years of experience in production and development, providing reliable and customized solutions.

Send Inquiry

Product Introduction

Introduction

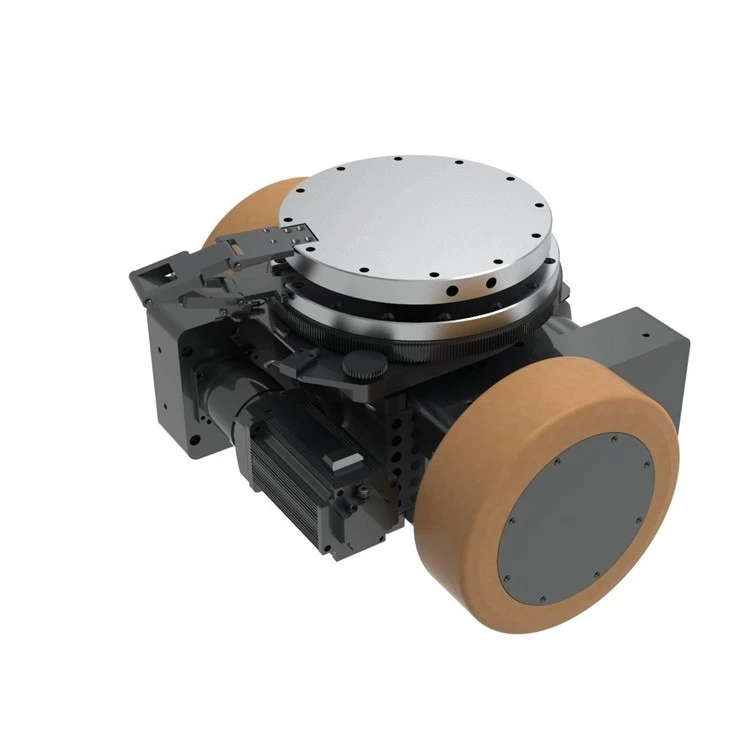

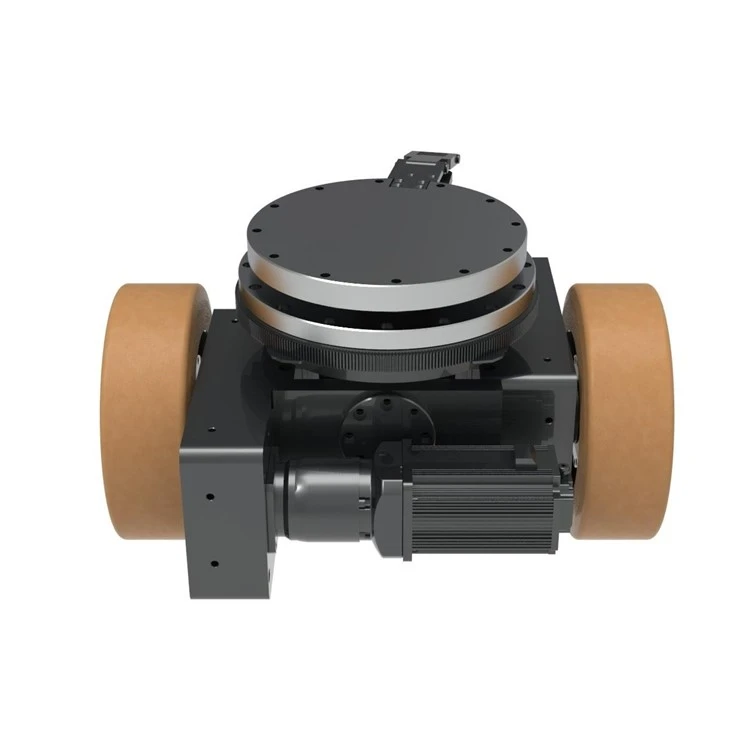

The Dual Differential Drive Wheel with Hydraulic Lifting Module integrates a robust differential drive system with a hydraulic lifting mechanism, enabling both precise mobility and vertical load handling. It is designed for heavy-duty AGVs, autonomous forklifts, and industrial material handling equipment that require flexible positioning and lifting capabilities.

Its core advantage lies in the combination of independent differential drive control and a hydraulic lifting module, allowing the system to perform accurate steering, stable driving, and smooth lifting operations. This ensures high load capacity, enhanced operational efficiency, and reliable performance even in demanding industrial environments, such as warehouses, production lines, and outdoor logistics scenarios.

1.Dual-wheel structure with high load capacity, small turning radius, low height, and large output torque.

2.Dual Differential Drive Wheel series (named by wheel diameter in mm): 85, 105, 240, 280, 400, 500, 550 series for diverse applications.

3.Load capacity of Dual Differential Drive Wheels ranges from 500 kg to 25,000 kg for various series.

4.Input voltage range: 12V-96V.

5.Optional wheel materials: polyurethane or rubber.

6.Equipped with servo motors with a power range of 100W to 6KW.

7.Optional components: shock-absorbing springs, incremental/absolute encoders, brakes, etc.

8.Customizable series: explosion-proof motors, low-temperature motors, high IP protection rating.

Parameter (Specification)

Series	Rated Power (S2) [W]	Rated Voltage [V (DC)]	Rated Current [A]	Rated Speed [Rpm]	Rated Torque [Nm]	IP Protection Rating	Wheel Diameter [mm]	Rated Load [kg]
PLT-85	200	48	5.3	3000	0.64	54	85	500
PLT-105	400	48	20	3000	1.27	65	105	650
PLT-120	400	48	24	3000	1.27	54	120	650
PLT-240	750	48	19.6	3000	2.4	65	240	2000
PLT-280	2000	48	48	3000	6.4	54	280	3200
PLT-400	2500	48	61	3000	7.96	54	400	10000
PLT-450	4300	72	70	1500	27	54	450	12000
PLT-500	5500	48	135	1500	35	54	550	20000
PLT-550	5500	48	135	1500	35	54	550	23000

Download

Three Key Product Advantages

High-quality alloy material with greater load capacity.

Paired with polyurethane wheels, the equipment is more durable.

Dual motors with independent control for enhanced flexibility.

Six Key Quality Assurances

Professional Technical Team

Skilled Technicians

Advanced Production Equipment

Experienced Production Personnel

Strict Testing Procedures

Company Factory

FAQ

Q: What is the main function of the hydraulic lifting module in the dual differential drive wheel?

A: The hydraulic lifting module is designed to provide vertical lifting capability for the AGV or unmanned vehicle. It allows the system to raise or lower the load platform smoothly, enabling easier docking, loading, unloading, and alignment with production lines or transfer stations.

Q: Can the Dual Differential Drive Wheel with Hydraulic Lifting Module be used in heavy-duty applications?

A: Yes. It is specifically engineered for heavy-duty AGVs, autonomous forklifts, and industrial transport systems. The combination of a differential drive system and hydraulic lifting structure ensures strong load capacity, stable movement, and reliable performance under continuous industrial operation.

Q: What are the key advantages compared with a standard AGV drive wheel?

A: Compared with a standard drive wheel, this integrated solution offers both mobility and lifting functionality in one system. It improves positioning flexibility, reduces the need for additional lifting mechanisms, and enhances overall system efficiency while maintaining precise steering and stable operation in complex environments.
