Planetary Horizontal Drive Wheel With Steering

The Planetary Horizontal Drive Wheel With Steering adopts an integrated design combining a planetary reducer and a high-rigidity wheel body. It is specifically engineered for high torque output and precise motion control applications. Its planetary gear structure achieves over 95% transmission efficiency, providing stable power output under heavy-load conditions and making it a core component for high-efficiency drives in industrial automation.

1.Compact structure, low noise, and high output torque.

2.Horizontal drive wheel series (named by wheel diameter in mm): covering a full range of applications with diameters of 150, 167, 198, 220, 250, 270, 300, 410, and 600.

3.Horizontal drive wheel load capacity: 600kg to 20,000kg across various series.

4.Input voltage range: 12V-96V; available in both steering and non-steering versions.

5.Optional wheel materials: polyurethane or rubber.

6.Optional motors: DC brushed, AC asynchronous, or permanent magnet servo motors, with a power range of 400W to 15KW.

7.Optional components: damping springs, limit switches, preset switches, incremental/absolute encoders, potentiometers, and other parts.

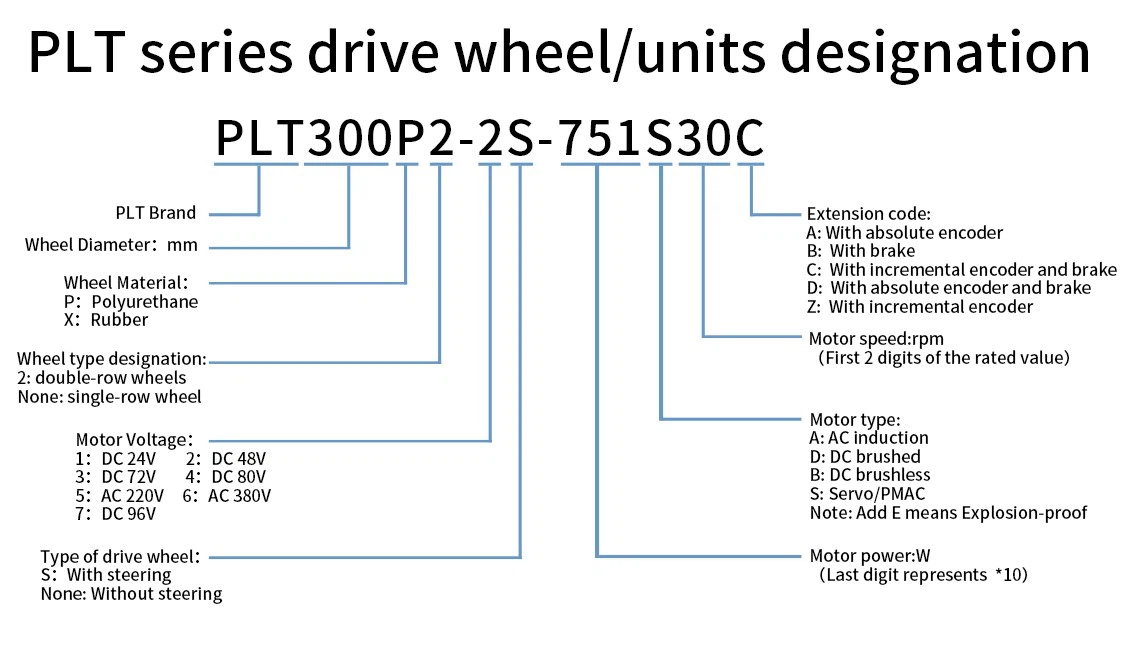

Model	Rated Voltage (V)	Power (W)	Rated Current (A)	Speed (RPM)	Rated Torque (Nm)	Reduction Ratio	Output Torque (Nm)	Max Torque (Nm)	Max Load (Kg)
PLT-150	48	750	18	3000	2.4	21	40	114	600
	48	1000	27	3000	32	21	54	114	600
PLT-167	24	400	18.4	3000	1.27	21	23	69	800
	24	400	18.4	3000	1.27	32	35	105	800
	48	750	18	3000	2.4	21	40	120	800
	48	1000	26.4	3000	3.18	32	88	240	800
PLT-198	48	3000	68	3000	9.55	32	260	576	1500
PLT-220	48	750	18	3000	2.4	28	58	174	1000
	48	750	18	3000	2.4	40	82	246	1000
	48	1000	26.4	3000	3.18	40	102	306	1000
PLT-250	48	1500	35	2000	7.16	27	165	480	1600
	48	1500	35	2000	7.16	40	245	735	1600
	48	2000	50	2000	9.55	27	220	480	1600
	48	2000	50	2000	9.55	40	325	880	1600
PLT-270	48	2500	55	2000	11.9	28	284	872	2000
	48	2500	55	2000	11.9	40	405	1040	2000
PLT-300	48	3000	74	2500	12	21	214	642	3000
	48	3000	74	2500	12	40	408	1080	3000
	48	4000	96	2500	15	21	268	780	3000
	48	4000	96	2500	15	40	510	1080	3000
PLT-410	48	5800	150	2000	27	40	918	3060	6000
	48	5800	150	2000	27	70	1610	3060	6000
	48	7500	208	2000	35	40	1190	2980	6000
	48	7500	208	2000	35	70	2080	3060	6000
PLT-600	48	8000	196	2000	40	120	4080	6400	12000
	72	9000	196	1500	48	82.87	3356	10000	20000



Download



Products PDF drawing

 PLT120P301SP30-9-22HS.pdf

 PLT150P751SP30-21-11HS-A.pdf

 PLT150P751SP30-21-22HS-A.pdf

PLT167P102SP30-21-22HS-A.pdf

PLT167P102SP30-32-22HS-A.pdf

PLT167P751SP30-21-22HS-B-DZB.pdf

PLT198P152SP30-32-22HS-A.pdf

PLT220P102SP30-28-22HS-A.pdf

PLT250P152SP30-27-22HS-A.pdf

PLT270P252SP20-28-22HS-A.pdf

PLT300P302SP25-40-22HS-A.pdf

PLT350P362SP30-40-22HS-64C.pdf

PLT410P582SP20-40-22HS-A.pdf

PLT-500P602SP30-120-66HS-80D.pdf

PLT600P802SP20-120-22HS-80A.pdf

Products 3D drawings

 PLT120P301SP30-9-22HS(3D).zip

 PLT150P751SP30-21-11HS-A(3D).zip

 PLT150P751SP30-21-22HS-A(3D).zip

 PLT167P102SP30-21-22HS-A(3D).zip

 PLT167P102SP30-32-22HS-A(3D).zip

 PLT167P751SP30-21-22HS-B-DZB(3D).zip

 PLT198P152SP30-32-22HS-A(3D).zip

 PLT220P102SP30-28-22HS-A(3D).zip

 PLT250P152SP30-27-22HS-A(3D).zip

 PLT270P252SP20-28-22HS-A(3D).zip

 PLT300P302SP25-40-22HS-A(3D).zip

 PLT350P362SP30-40-22HS-64C(3D).zip

 PLT410P582SP20-40-22HS-A(3D).zip

 PLT500P602SP30-120-77HS-80D(3D).zip

 PLT600P802SP20-120-22HS-80A(3D).zip

Applications

Heavy Industrial Equipment

Suitable for heavy industrial equipment, providing reliable power support.

Logistics Handling

Provides precise control and high torque output for logistics and handling equipment.



Six Key Quality Assurances



Professional Technical Team

Skilled Technicians

Advanced Production Equipment

Experienced Production Personnel

Strict Testing Procedures

Company Factory



FAQ



Q: What is the torque output capability of the Planetary Horizontal Drive Wheel With Steering?

A: Our drive wheel is designed to provide outstanding torque output even under high load, making it suitable for heavy load applications.

Q: What application environments is this product suitable for?

A: The Planetary Horizontal Drive Wheel is particularly suited for high load applications that require strict control precision, widely used in industrial robots and automation equipment.

Q: How can I ensure the stability of the Planetary Horizontal Drive Wheel With Steering?

A: We use high-strength materials and strict quality control to ensure the product's stability and reliability in various harsh environments.
