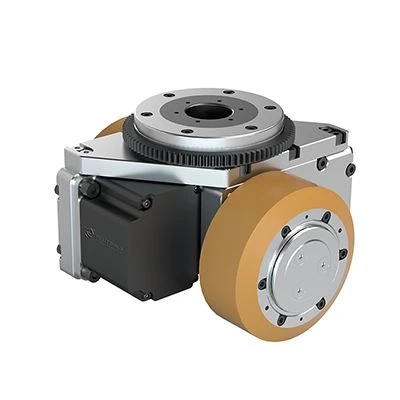

Dual Differential Drive Wheel

We supply dual differential drive wheels, which are ideal for use in tight spaces and demanding industrial environments. As one of China's leading suppliers of core components for mobile robots, we have over 10 years of experience in production and development, providing reliable and customized solutions.

Send Inquiry

Product Introduction

Introduction

The Dual Differential Drive Wheel consists of two or more differential drive wheels, offering excellent load capacity, stability, and flexibility. It is particularly suitable for heavy-duty AGVs, unmanned forklifts, and industrial automation equipment. Its core advantage lies in the differential drive mechanism, enabling precise steering and efficient power output while maintaining smooth operation even in confined spaces or complex terrains.

1.Dual-wheel structure with high load capacity, small turning radius, low height, and large output torque.

2.Dual Differential Drive Wheel series (named by wheel diameter in mm): 85, 105, 240, 280, 400, 500, 550 series for diverse applications.

3.Load capacity of Dual Differential Drive Wheels ranges from 500 kg to 25,000 kg for various series.

4.Input voltage range: 12V-96V.

5.Optional wheel materials: polyurethane or rubber.

6.Equipped with servo motors with a power range of 100W to 6KW.

7.Optional components: shock-absorbing springs, incremental/absolute encoders, brakes, etc.

8.Customizable series: explosion-proof motors, low-temperature motors, high IP protection rating.

Parameter (Specification)

Series	Rated Power (S2) [W]	Rated Voltage [V (DC)]	Rated Current [A]	Rated Speed [Rpm]	Rated Torque [Nm]	IP Protection Rating	Wheel Diameter [mm]	Rated Load [kg]
PLT-85	200	48	5.3	3000	0.64	54	85	500
PLT-105	400	48	20	3000	1.27	65	105	650
PLT-120	400	48	24	3000	1.27	54	120	650
PLT-240	750	48	19.6	3000	2.4	65	240	2000
PLT-280	2000	48	48	3000	6.4	54	280	3200
PLT-400	2500	48	61	3000	7.96	54	400	10000
PLT-450	4300	72	70	1500	27	54	450	12000
PLT-500	5500	48	135	1500	35	54	550	20000
PLT-550	5500	48	135	1500	35	54	550	20000

Download

Three Key Product Advantages

High-quality alloy material with greater load capacity.

Paired with polyurethane wheels, the equipment is more durable.

Dual motors with independent control for enhanced flexibility.

Six Key Quality Assurances

Professional Technical Team

Skilled Technicians

Advanced Production Equipment

Experienced Production Personnel

Strict Testing Procedures

Company Factory

FAQ

Q: What applications are dual differential drive wheel sets suitable for?

A: Dual differential drive wheel sets are widely used in heavy-duty transport equipment, large industrial robots, and high-precision cargo transport where strong driving power and high stability are required.

Q: How do I choose the right dual differential drive wheel set?

A: When choosing a dual differential drive wheel set, you should consider the load requirements, the specific application environment, and operational conditions. We recommend consulting our technical support for customized advice.

Q: What are the main advantages of dual differential drive wheel sets?

A: Dual differential drive wheel sets offer higher load capacity and stability, making them ideal for extended operations in large equipment. They ensure smooth operation under heavy loads or on challenging terrain while also improving overall maneuverability.
