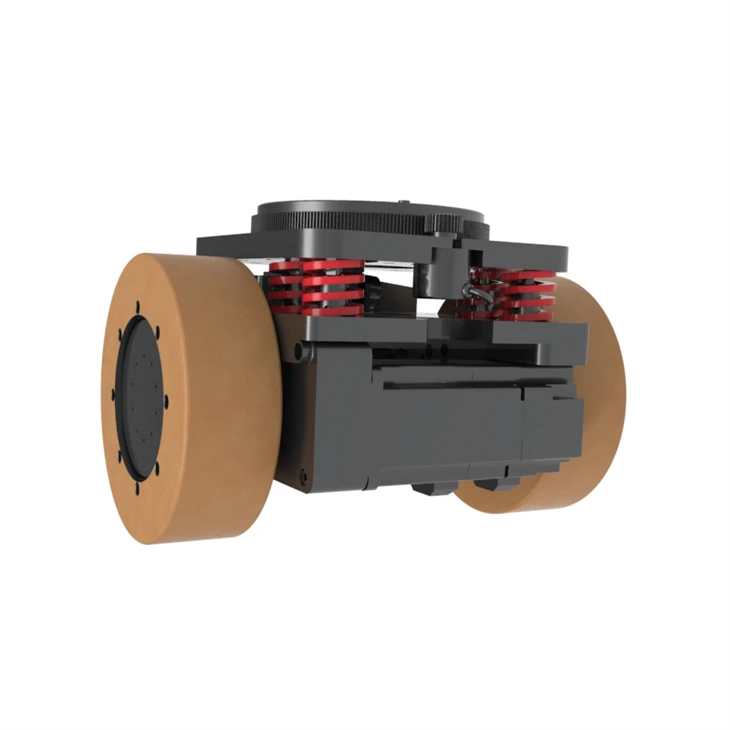

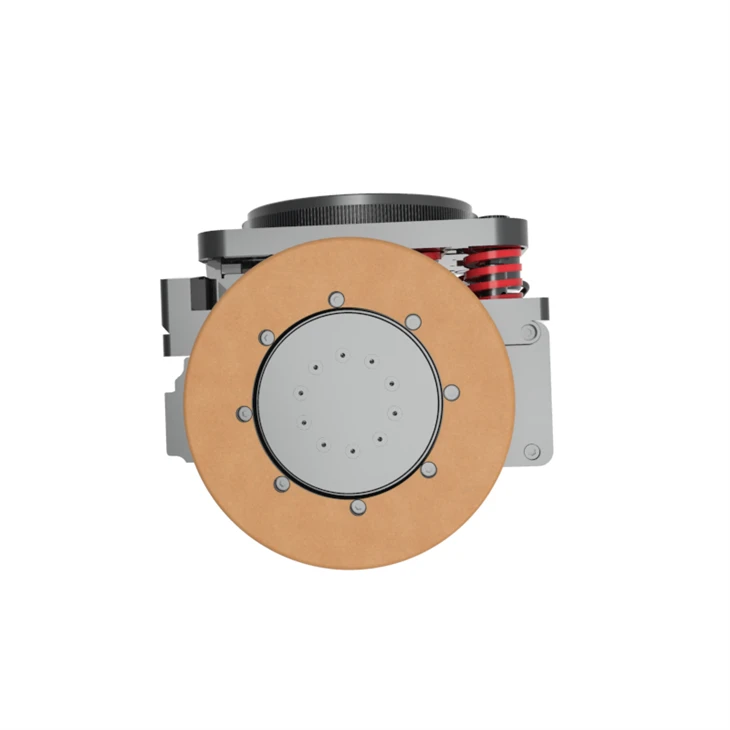

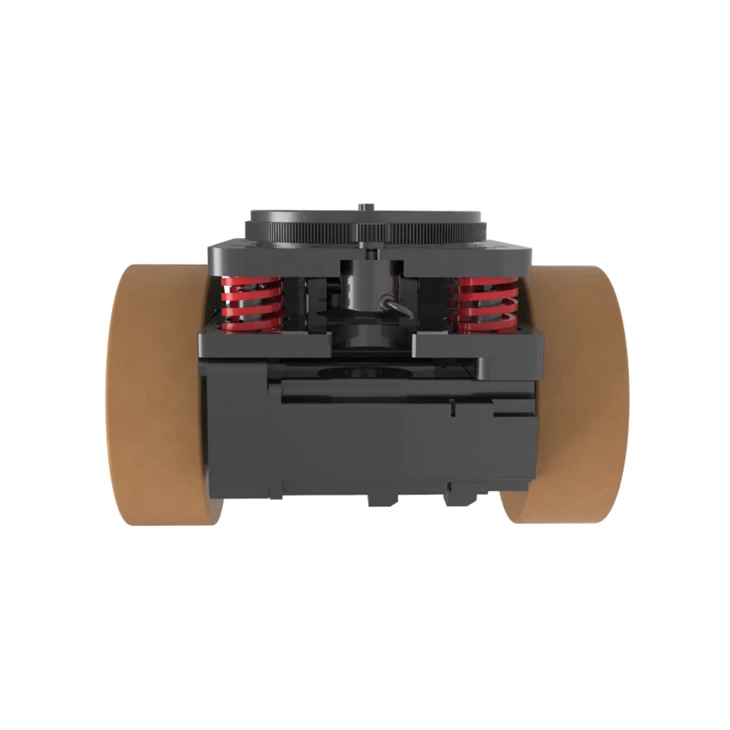

Dual Differential Drive Wheel With Suspension Module

The Dual Differential Drive Wheel with Suspension Module is designed to improve motion stability and driving comfort for AGVs, mobile robots, and industrial transport platforms. Featuring a compact 200mm wheel diameter, it integrates a differential drive system with a suspension module to effectively reduce vibration and enhance ground adaptability during operation.

Its core advantage lies in the combination of precise differential steering and a mechanical suspension structure, allowing smoother movement, better shock mitigation, and improved contact with uneven surfaces. This makes it well-suited for light to medium-duty AGVs operating in warehouses, production lines, and indoor logistics environments.

2.Dual Differential Drive Wheel series (named by wheel diameter in mm): 85, 105, 240, 280, 400, 500, 550 series for diverse applications.

3.Load capacity of Dual Differential Drive Wheels ranges from 500 kg to 25,000 kg for various series.

4.Input voltage range: 12V-96V.

5.Optional wheel materials: polyurethane or rubber.

6.Equipped with servo motors with a power range of 100W to 6KW.

7.Optional components: shock-absorbing springs, incremental/absolute encoders, brakes, etc.

8.Customizable series: explosion-proof motors, low-temperature motors, high IP protection rating.

Series	Rated Power (S2) [W]	Rated Voltage [V (DC)]	Rated Current [A]	Rated Speed [Rpm]	Rated Torque [Nm]	IP Protection Rating	Wheel Diameter [mm]	Rated Load [kg]
PLT-85	200	48	5.3	3000	0.64	54	85	500
PLT-105	400	48	20	3000	1.27	65	105	650
PLT-120	400	48	24	3000	1.27	54	120	650
PLT-240	750	48	19.6	3000	2.4	65	240	2000
PLT-280	2000	48	48	3000	6.4	54	280	3200
PLT-400	2500	48	61	3000	7.96	54	400	10000
PLT-450	4300	72	70	1500	27	54	450	12000
PLT-500	5500	48	135	1500	35	54	550	20000
PLT-550	5500	48	135	1500	35	54	550	23000



Download



Products PDF drawing

 PLT200P152SP30-32-2DDB.pdf

Products 3D drawings

 PLT200P152SP30-32-2DDB.zip

Three Key Product Advantages

High-quality alloy material with greater load capacity.

Paired with polyurethane wheels, the equipment is more durable.

Dual motors with independent control for enhanced flexibility.



Six Key Quality Assurances



Professional Technical Team

Skilled Technicians

Advanced Production Equipment

Experienced Production Personnel

Strict Testing Procedures

Company Factory



FAQ



Q: What is the purpose of the suspension module in this drive wheel?

A: The suspension module helps absorb vibration and adapt to minor floor irregularities by allowing limited mechanical movement. This improves stability and ensures smoother operation during AGV motion.

Q: What applications is this 200mm Dual Differential Drive Wheel suitable for?

A: It is suitable for light to medium-duty AGVs, mobile robots, and automated material handling systems, especially in indoor environments such as warehouses, assembly lines, and distribution centers.

Q: How does this suspension-type design improve performance compared to a rigid drive wheel?

A:Compared with a rigid structure, the suspension design enhances ground contact consistency, reduces vibration transmission to the vehicle body, and improves overall driving smoothness and control accuracy in uneven indoor conditions.
